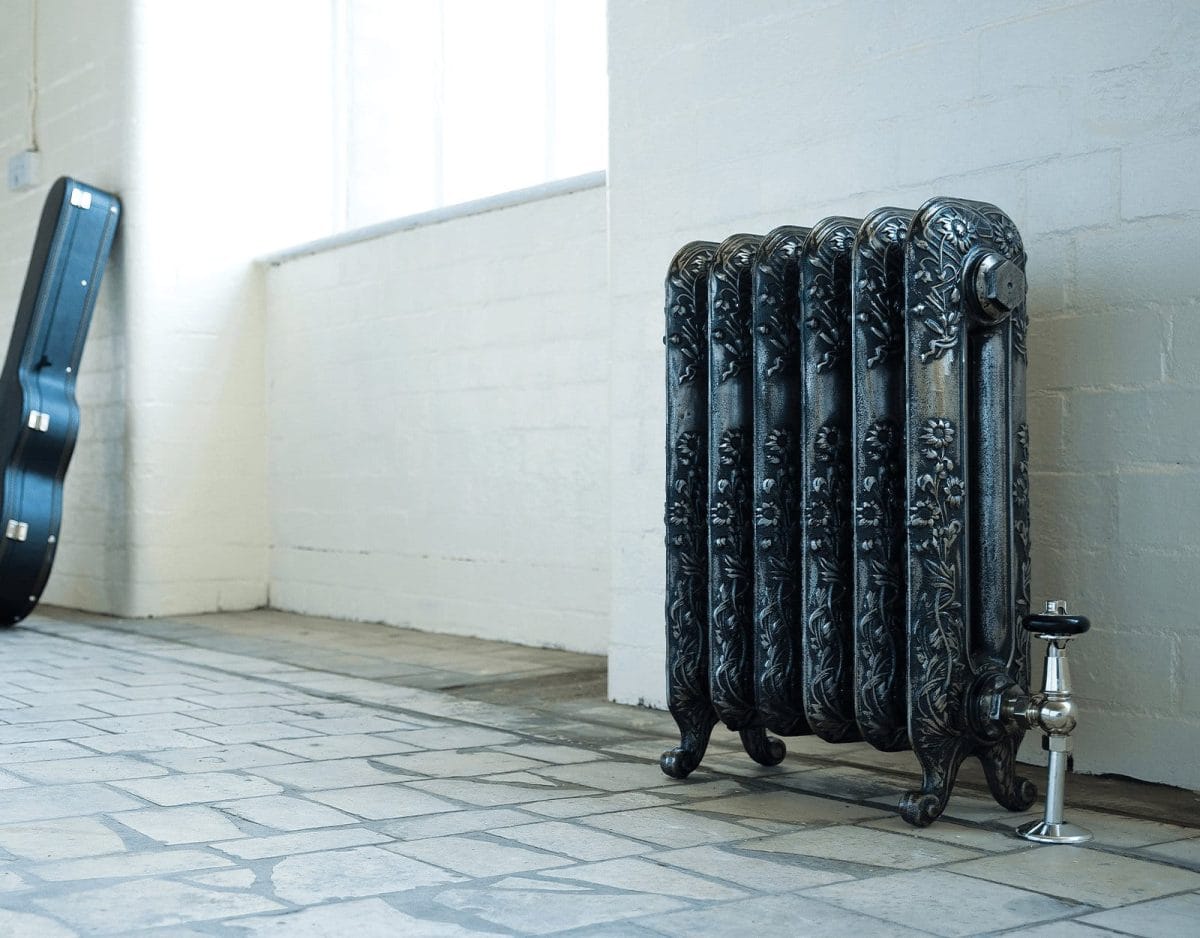

Arroll Daisy 2 Column Cast Iron Radiators are beautiful with a highly decorative design and the perfect choice for an elegant and ornate look.
This traditionally styled radiator comes in two sizes, 590mm high and 790mm high. Available in the full range of finishes including the beautiful aged and stunning rustic polish.
The Arroll Daisy 2 Column can be delivered fully built and tested up to 18 sections which is about 1200mm long. You may have this radiator in any length but some assembly on site will be required.
Each section is approximatey 65mm wide. The lengths of the radiator stated should only be used as a guide as every radiator is bespoke and hand built to your own specification. There will be tollerences for seal compression and milled faces so please don’t use these exact measurments to fix pipes.
Painted in any colour of your choice
Cast Iron Radiator Building Steps
Step OneSelect how many Radiator Sections
A section of a Cast Iron Radiator refers to each individual Cast Iron piece that, when fixed together, make up a Radiator.
Step TwoSelect your colour finish
We can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customization.
Step ThreeChoose Radiator Valves
Eleifend ullamcorper Aenean quam.Nec gravida conubia morbi eleifend ullamcorper aenean quam
Scelerisque ullamcorper facilisis nisl a suspendisse elementum musat rasd dignissim at condimentum artas quam ut in. Ars hac posuere luctus vehicula dapibus facilisis commodo curae parturient adipiscing natoque.
Step FourSelect your Bleeding Valves
We can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customization.
Step FiveChoose Luxury Wall Brackets
Eleifend ullamcorper Aenean quam.Nec gravida conubia morbi eleifend ullamcorper aenean quam
Scelerisque ullamcorper facilisis nisl a suspendisse elementum musat rasd dignissim at condimentum artas quam ut in. Ars hac posuere luctus vehicula dapibus facilisis commodo curae parturient adipiscing natoque.
Features

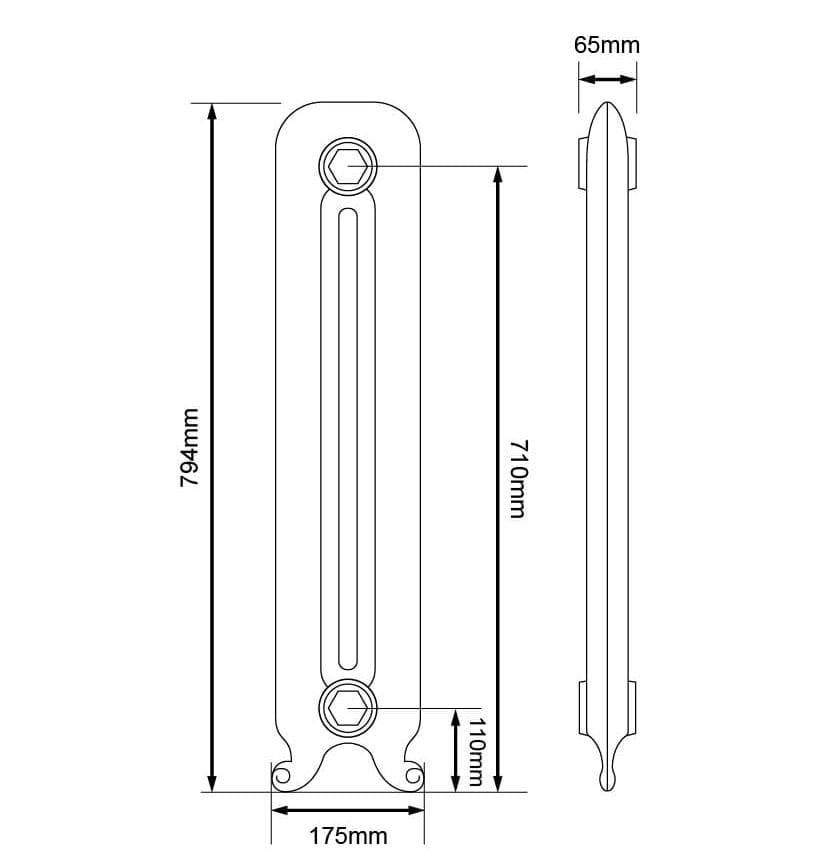

Dimensions
DIMENSIONS
LEG SECTION HEIGHT
794mm
SECTION LENGTH
65mm
MIDDLE SECTION HEIGHT
736mm
SECTION DEPTH
176mm
BOTTOM INLET TO FLOOR
110mm
TOP INLET TO FLOOR
708mm
PIPE CENTRES TO SKIRT
88mm
Technical
DIMENSIONS
LEG SECTION HEIGHT
794mm
SECTION LENGTH
65mm
MIDDLE SECTION HEIGHT
736mm
SECTION DEPTH
176mm
BOTTOM INLET TO FLOOR
110mm
TOP INLET TO FLOOR
708mm
PIPE CENTRES TO SKIRT
88mm
WEIGHT
EMPTY WEIGHT PER LEG SECTION
10.39 Kgs
EMPTY WEIGHT PER MIDDLE SECTION
9.25 Kgs
FILLED WEIGHT PER LEG SECTION
13.39 Kgs
FILLED WEIGHT PER MIDDLE SECTION
12.25 Kgs
VOLUME PER LEG SECTION
3L
VOLUME PER MIDDLE SECTION
3L
HEAT OUTPUT PER SECTION
DELTA ∆T 50˚C
104 Watts / 355 BTUs
DELTA ∆T 60˚C
130 Watts / 448 BTUs
About The Brand - Arroll
Delivery
Arroll Cast Iron Radiators are extremely heavy so must be delivered on pallets. Standard UK Radiator Delivery is £49.99, there is a surcharge for more remote areas. We also deliver worldwide. Up to 4 standard radiators can be shipped on one pallet. Delivery is made kerb side to ground floor level of the delivery address. There must be access for the lorry and pallet truck so please bear this in mind.
IMPORTANT FINISH DELIVERY INFORMATION:
14 working days delivery for a Primer Finish
21 days for Paint Finish
28 days for Polished Finished
Overseas Orders
We regularly deliver goods across Europe and around the world. Please contact us for details on orders to be shipped outside of the UK.
