Arroll Rococo Cast Iron Radiators are beautifully embossed and scrolled the Rococo cast iron radiator comes in three heights and is designed for narrow places such as hallways and landings. The Rococo Single Column can also be refered to as the 2 column. This radiator model will also compliment Arrolls Rococo 3 Column or Parisian 2 Column to offer stunning ornate radiators for every room or space in the house.
The Arroll Rococo 2 Column can be delivered fully built and tested up to 15 sections which is about 1200mm long. You may have this radiator in any length but some assembly on site will be required.
Each section is approximatey 75mm wide. The lengths of the radiator stated should only be used as a guide as every radiator is bespoke and hand built to your own specification. There will be tollerences for seal compression and milled faces so please don’t use these exact measurments to fix pipes.
Painted in any colour of your choice
Cast Iron Radiator Building Steps
Step OneSelect how many Radiator Sections
A section of a Cast Iron Radiator refers to each individual Cast Iron piece that, when fixed together, make up a Radiator.
Step TwoSelect your colour finish
We can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customization.
Step ThreeChoose Radiator Valves
Eleifend ullamcorper Aenean quam.Nec gravida conubia morbi eleifend ullamcorper aenean quam
Scelerisque ullamcorper facilisis nisl a suspendisse elementum musat rasd dignissim at condimentum artas quam ut in. Ars hac posuere luctus vehicula dapibus facilisis commodo curae parturient adipiscing natoque.
Step FourSelect your Bleeding Valves
We can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customization.
Step FiveChoose Luxury Wall Brackets
Eleifend ullamcorper Aenean quam.Nec gravida conubia morbi eleifend ullamcorper aenean quam
Scelerisque ullamcorper facilisis nisl a suspendisse elementum musat rasd dignissim at condimentum artas quam ut in. Ars hac posuere luctus vehicula dapibus facilisis commodo curae parturient adipiscing natoque.
Features

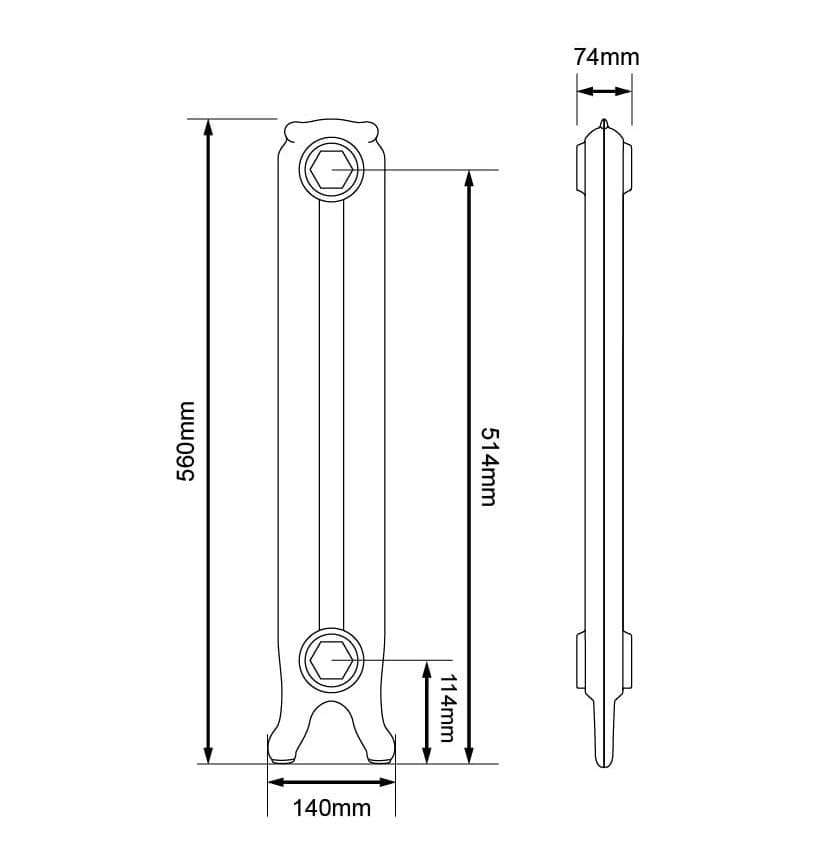

Dimensions
DIMENSIONS
LEG SECTION HEIGHT
562mm
SECTION LENGTH
74mm
MIDDLE SECTION HEIGHT
501mm
SECTION DEPTH
142mm
BOTTOM INLET TO FLOOR
114mm
TOP INLET TO FLOOR
514mm
PIPE CENTRES TO SKIRT
71mm
Technical
DIMENSIONS
LEG SECTION HEIGHT
562mm
SECTION LENGTH
74mm
MIDDLE SECTION HEIGHT
501mm
SECTION DEPTH
142mm
BOTTOM INLET TO FLOOR
114mm
TOP INLET TO FLOOR
514mm
PIPE CENTRES TO SKIRT
71mm
WEIGHT
EMPTY WEIGHT PER LEG SECTION
8.5 Kgs
EMPTY WEIGHT PER MIDDLE SECTION
7.5 Kgs
FILLED WEIGHT PER LEG SECTION
9.5 Kgs
FILLED WEIGHT PER MIDDLE SECTION
8.5 Kgs
VOLUME PER LEG SECTION
1L
VOLUME PER MIDDLE SECTION
1L
HEAT OUTPUT PER SECTION
DELTA ∆T 50˚C
60 Watts / 205 BTUs
DELTA ∆T 60˚C
75 Watts / 259 BTUs
About The Brand - Arroll
Delivery
Arroll Cast Iron Radiators are extremely heavy so must be delivered on pallets. Standard UK Radiator Delivery is £49.99, there is a surcharge for more remote areas. We also deliver worldwide. Up to 4 standard radiators can be shipped on one pallet. Delivery is made kerb side to ground floor level of the delivery address. There must be access for the lorry and pallet truck so please bear this in mind.
IMPORTANT FINISH DELIVERY INFORMATION:
14 working days delivery for a Primer Finish
21 days for Paint Finish
28 days for Polished Finished
Overseas Orders
We regularly deliver goods across Europe and around the world. Please contact us for details on orders to be shipped outside of the UK.
