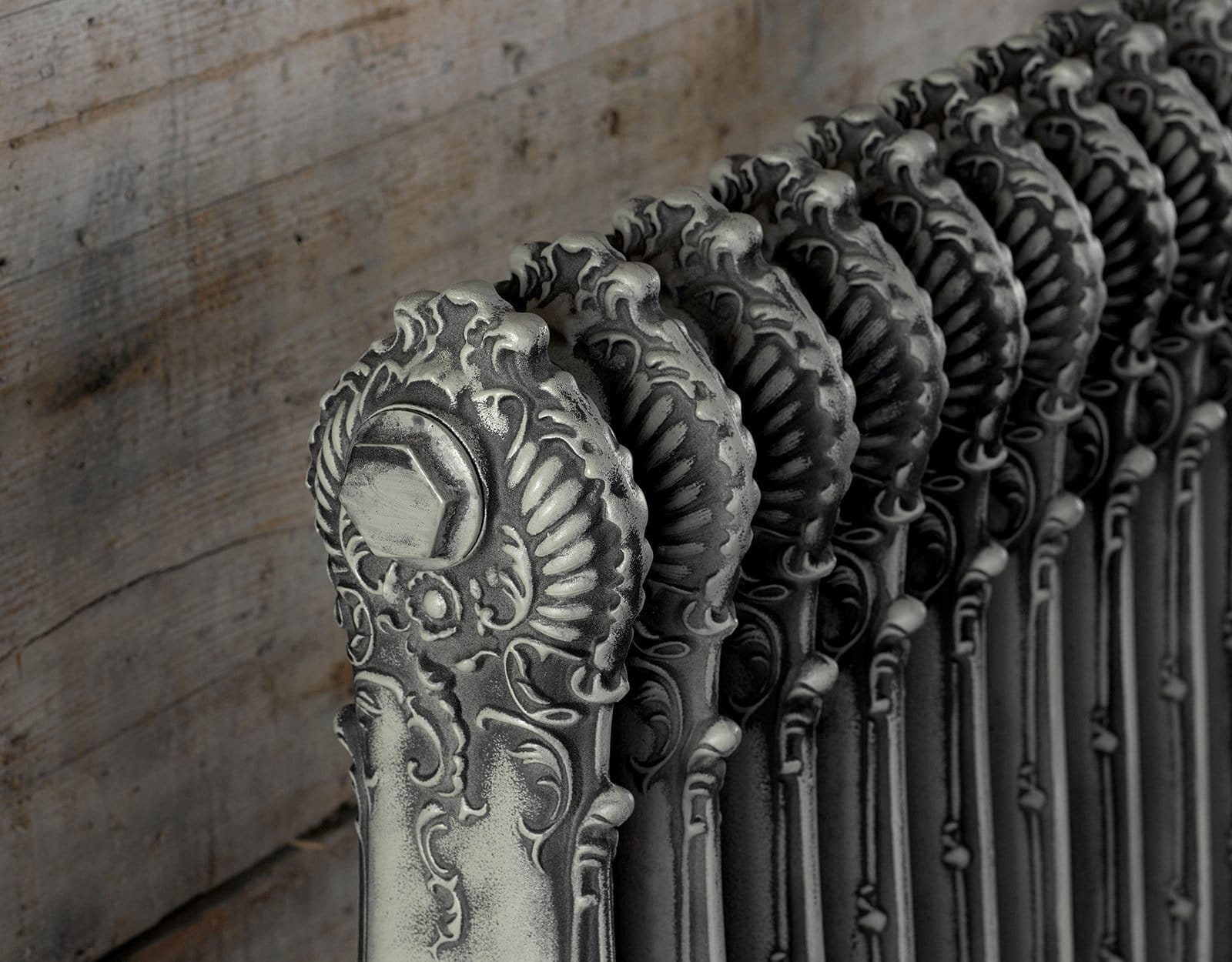

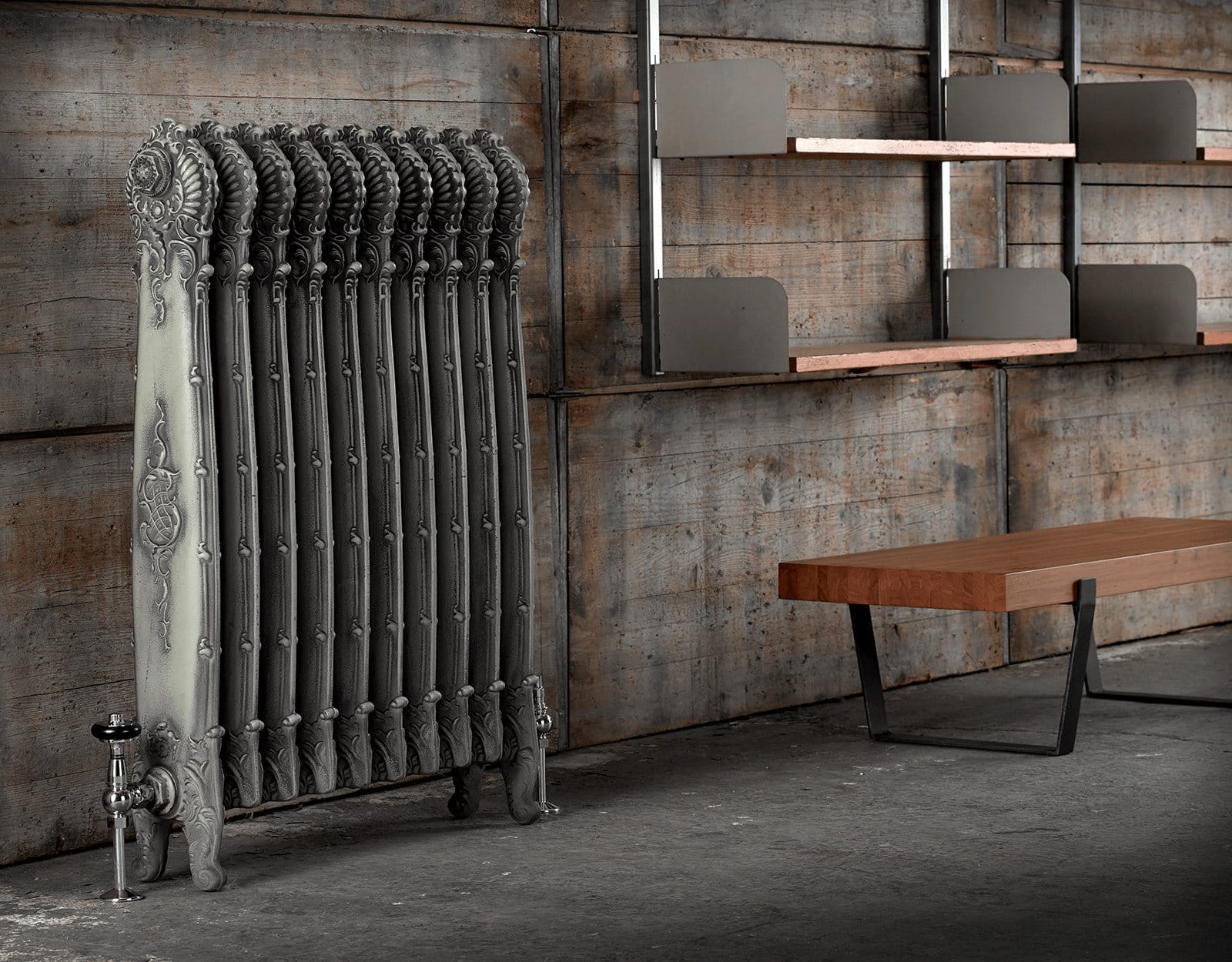

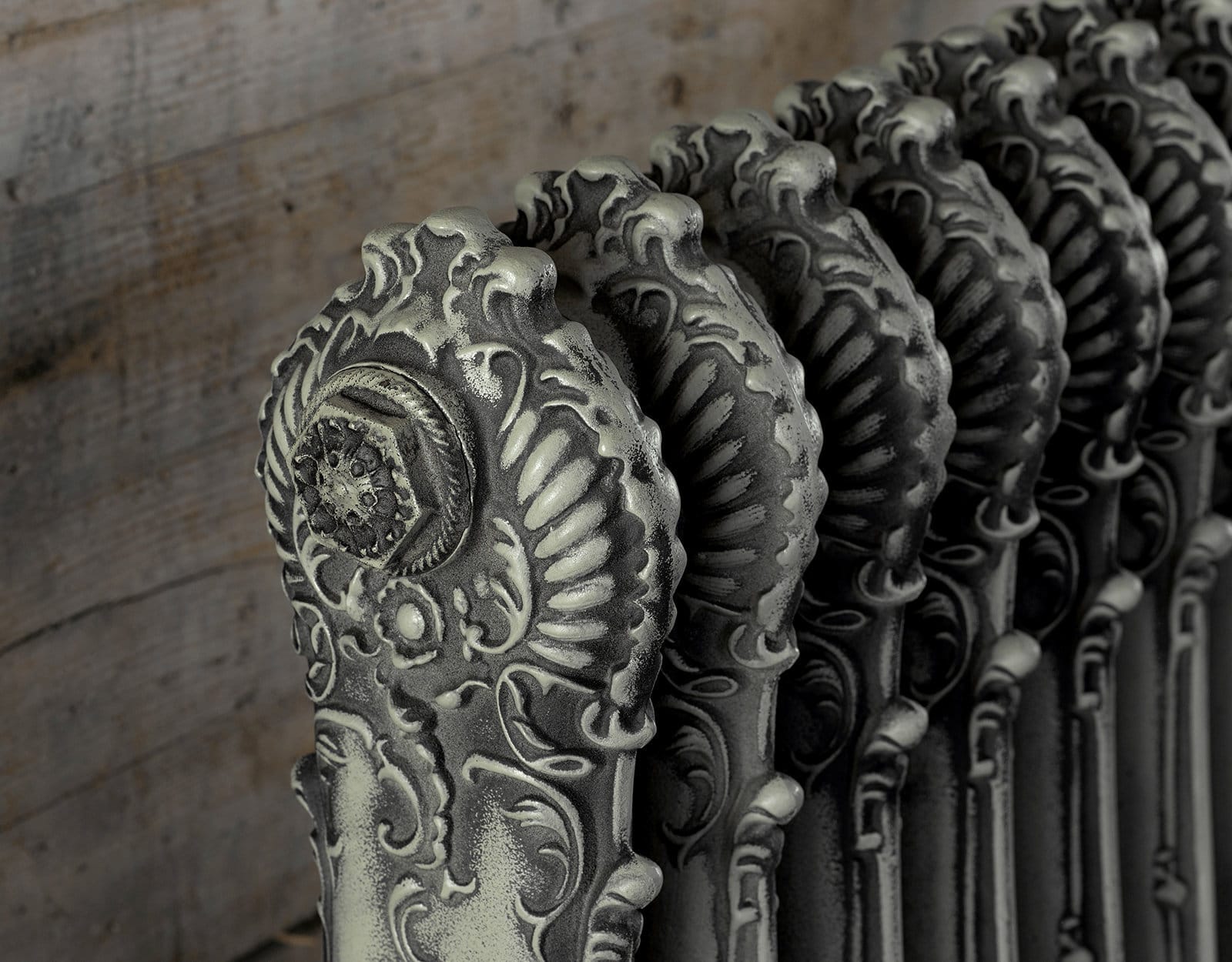

Arroll Alexandra Cast Iron Radiators are inspired by french design With its scrolling intricate design from top to bottom, allow the Alexandra to bring some of the periodic French elegance into the 21st century.
Each section is approximately 72mm wide. The lengths of the Radiator stated should only be used as a guide as every radiator is bespoke and hand built to your own specification. There will be tolerances for seal compression and milled faces so please don’t use these exact measurements to fix pipes.
The Arroll Alexandra Cast Iron Radiator can be delivered fully built and tested up to 20 sections. You may have this radiator in any length but some assembly on site will be required.
Painted in any colour of your choice
Available in Primer, Painted, Polished, Satin Polished
Cast Iron Radiator Building Steps
Step OneSelect how many Radiator Sections
A section of a Cast Iron Radiator refers to each individual Cast Iron piece that, when fixed together, make up a Radiator.
Step TwoSelect your colour finish
We can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customization.
Step ThreeChoose Radiator Valves
Eleifend ullamcorper Aenean quam.Nec gravida conubia morbi eleifend ullamcorper aenean quam
Scelerisque ullamcorper facilisis nisl a suspendisse elementum musat rasd dignissim at condimentum artas quam ut in. Ars hac posuere luctus vehicula dapibus facilisis commodo curae parturient adipiscing natoque.
Step FourSelect your Bleeding Valves
We can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customization.
Step FiveChoose Luxury Wall Brackets
Eleifend ullamcorper Aenean quam.Nec gravida conubia morbi eleifend ullamcorper aenean quam
Scelerisque ullamcorper facilisis nisl a suspendisse elementum musat rasd dignissim at condimentum artas quam ut in. Ars hac posuere luctus vehicula dapibus facilisis commodo curae parturient adipiscing natoque.
Colours & Finishes
Arroll radiator finishes
Painted Finishes
Arroll can paint your radiator in just about any way you want using specialist paints that are hardwearing and UV resistant. The most common way is using one of their Signature Colours as shown below. These are the most popular colours that work in just about any space. Gloss is the standard finish but Satin is available on request. Lead times for Painting is between 10 and 15 working days before shipping.
If you’re after something a bit more unique, at no extra cost, you can pick colours from the RAL Colour Standard which is the most common classification for painting in architecture and industry. Each colour has a RAL number and name. We can also provide colour match of Farrow & Ball or Little Greene paints. Colour matching will be as sympathetic to the original as possible.
Genuine Farrow and Ball
Arroll can also provide genuine Farrow & Ball paint for a small upcharge. The standard finish these will be provided in is Estate Eggshell. Below are a selection of Arroll’s most popular Farrow and Ball colours. Please contact us for more F&B Colour options.
Aged Finishes
The radiator is assembled and pressure tested and then painted the base colour. Once dry is it over-painted the next colour. While wet, 2 coats of paint are removed in specific areas to create a stunning two tone look. This is particularly effective on ornate radiators to emphasize the pattern. Lead times are 14-21 working days.
Lacquered Aged Natural Brass
Beautiful on ornate, school house or traditional radiator styles, this brass finish adds a little something extra. To give it an aged look, after the radiator is painted and dried, it is then overpainted in the darker colour.
While wet, 2 coats of paint are removed in specific areas to create a stunning two tone look. This unique finish is then sealed with a coat of lacquer to protect the paint and gives an impressive gloss finish. This is particularly effective on ornate radiators to emphasise the pattern.
Highlighted Finishes
Especially popular on patterned cast iron radiators like the Daisy or Art Nouveau. This finish is achieved by assembling and painting the radiator first and then moving to the grinding and fettling department to highlight the pattern leaving the rest of the radiator black. Allow 14 to 21 days from order confirmation before shipping.
Polished Finishes
Full Polish:
Each section is sandblasted to remove any surface primers then fettled and individually hand polished by Arrolls experienced polishers. The radiator is then built, tested, and lacquered. The lacquer is used to help preserve the finish however due to the nature of cast iron and the environments in which the radiator may be kept this will not guarantee against rust spots appearing. Polish is called a ‘living finish’. If rust spots do appear, light wire wool will remove the spots followed by touch-up lacquer available from Arroll on request (charges may apply) . Polished finishes are not suitable for Humid atmospheres such as Bathrooms. It is also inadvisable to place wet or damp clothes on polished radiators. Lead times on Polished radiators from confirmation is normally between 21 and 28 working days before shipping. You can call us first for a more accurate delivery time for a specific model.
Rustic Polish:
Each section is coated with black primer then fettled leaving black in any uneven surfaces, the section is then individually hand polished by Arrolls experienced polishers. The radiator is then built, tested and lacquered. The lacquer is used to Help preserve the finish however due to the nature of cast iron and the environments in which the radiator may be kept this will not guarantee against rust spots appearing. If rust spots do appear, light wire wool will remove the spots followed by touch-up lacquer available from Arroll on request (charges may apply). Polished finishes are not suitable for Humid atmospheres such as Bathrooms. It is also inadvisable to place wet or damp clothes on polished radiators. Allow 21 to 28 working days after confirmation before shipping, again contact us if you need more accurate dates. Also called ‘Hand Burnished’.
Features

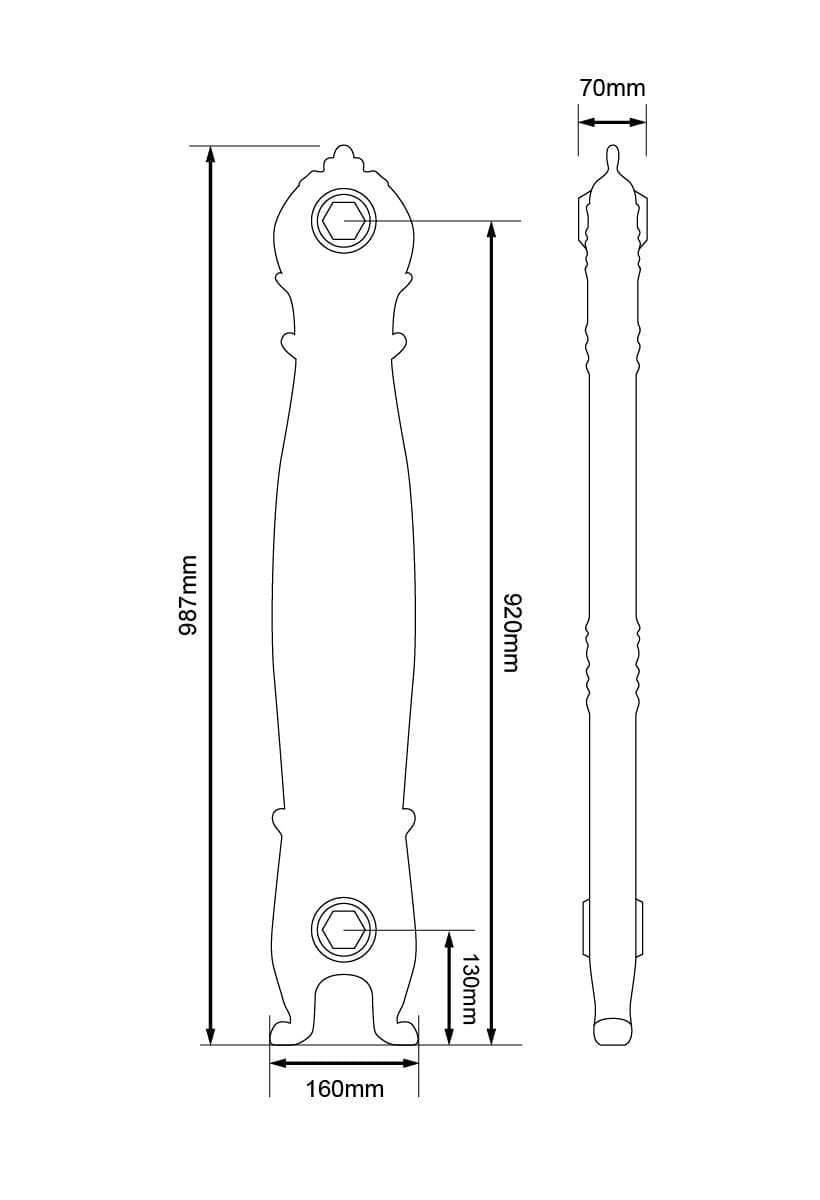

Dimensions
DIMENSIONS
LEG SECTION HEIGHT
987mm
SECTION LENGTH
74mm
MIDDLE SECTION HEIGHT
897mm
SECTION DEPTH
160mm
BOTTOM INLET TO FLOOR
128mm
TOP INLET TO FLOOR
916
PIPE CENTRES TO SKIRT
80mm
Technical
DIMENSIONS
LEG SECTION HEIGHT
987mm
SECTION LENGTH
74mm
MIDDLE SECTION HEIGHT
897mm
SECTION DEPTH
160mm
BOTTOM INLET TO FLOOR
128mm
TOP INLET TO FLOOR
916
PIPE CENTRES TO SKIRT
80mm
WEIGHT
EMPTY WEIGHT PER LEG SECTION
14.5 Kgs
EMPTY WEIGHT PER MIDDLE SECTION
14 Kgs
FILLED WEIGHT PER LEG SECTION
17 Kgs
FILLED WEIGHT PER MIDDLE SECTION
16.5 Kgs
VOLUME PER LEG SECTION
2.5L
VOLUME PER MIDDLE SECTION
2.5L
HEAT OUTPUT PER SECTION
DELTA ∆T 50˚C
125 Watts / 425 BTUs
DELTA ∆T 60˚C
158 Watts / 538 BTUs
About The Brand - Arroll
Delivery
Arroll Cast Iron Radiators are extremely heavy so must be delivered on pallets. Standard UK Radiator Delivery is £49.99, there is a surcharge for more remote areas. We also deliver worldwide. Up to 4 standard radiators can be shipped on one pallet. Delivery is made kerb side to ground floor level of the delivery address. There must be access for the lorry and pallet truck so please bear this in mind.
IMPORTANT FINISH DELIVERY INFORMATION:
14 working days delivery for a Primer Finish
21 days for Paint Finish
28 days for Polished Finished
Overseas Orders
We regularly deliver goods across Europe and around the world. Please contact us for details on orders to be shipped outside of the UK.
