Arroll Cherub Cast Iron Radiators antique style of this beautiful radiator originated in the romanesque and bohemian architecture of Central Europe. It was developed and manufactured in the USA by the American Radiator Company in 1842.
The lavish floral motif feels right at home in a period or traditional setting, though the intricate style creates a striking visual impact in an industrial or contemporary interior.
The Arroll Cast Iron Radiator Cherub can be delivered fully built and tested up to 17 sections which is about 1200mm long. You may have this radiator in any length but some assembly on site will be required. Also, please bear in mind the weight, often it’s best to have the taller and heavier radiators delivered in smaller sections.
Each section is approximatey 63mm wide. The lengths of the radiator stated should only be used as a guide as every radiator is bespoke and hand built to your own specification. There will be tollerences for seal compression and milled faces so please don’t use these exact measurments to fix pipes.
Painted in any colour of your choice
Cast Iron Radiator Building Steps
Step OneSelect how many Radiator Sections
A section of a Cast Iron Radiator refers to each individual Cast Iron piece that, when fixed together, make up a Radiator.
Step TwoSelect your colour finish
We can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customization.
Step ThreeChoose Radiator Valves
Eleifend ullamcorper Aenean quam.Nec gravida conubia morbi eleifend ullamcorper aenean quam
Scelerisque ullamcorper facilisis nisl a suspendisse elementum musat rasd dignissim at condimentum artas quam ut in. Ars hac posuere luctus vehicula dapibus facilisis commodo curae parturient adipiscing natoque.
Step FourSelect your Bleeding Valves
We can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customization.
Step FiveChoose Luxury Wall Brackets
Eleifend ullamcorper Aenean quam.Nec gravida conubia morbi eleifend ullamcorper aenean quam
Scelerisque ullamcorper facilisis nisl a suspendisse elementum musat rasd dignissim at condimentum artas quam ut in. Ars hac posuere luctus vehicula dapibus facilisis commodo curae parturient adipiscing natoque.
Features

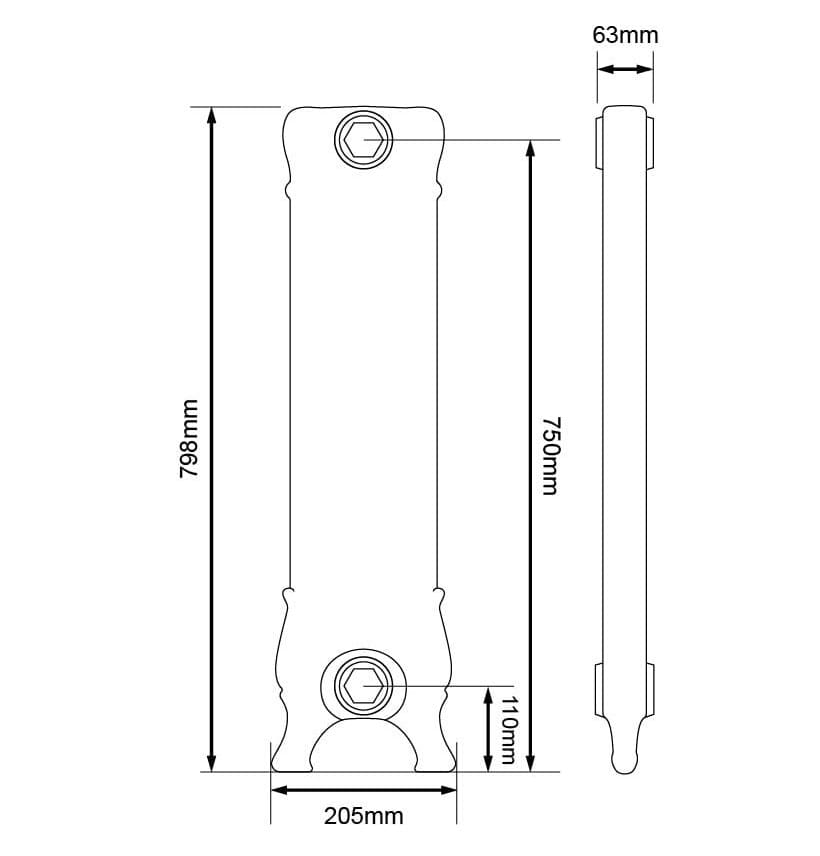

Dimensions
DIMENSIONS
LEG SECTION HEIGHT
798mm
SECTION LENGTH
69mm
MIDDLE SECTION HEIGHT
744mm
SECTION DEPTH
214mm
BOTTOM INLET TO FLOOR
111mm
TOP INLET TO FLOOR
751mm
PIPE CENTRES TO SKIRT
108mm
Technical
DIMENSIONS
LEG SECTION HEIGHT
798mm
SECTION LENGTH
69mm
MIDDLE SECTION HEIGHT
744mm
SECTION DEPTH
214mm
BOTTOM INLET TO FLOOR
111mm
TOP INLET TO FLOOR
751mm
PIPE CENTRES TO SKIRT
108mm
WEIGHT
EMPTY WEIGHT PER LEG SECTION
14.09 Kgs
EMPTY WEIGHT PER MIDDLE SECTION
13.75 Kgs
FILLED WEIGHT PER LEG SECTION
16.09 kgs
FILLED WEIGHT PER MIDDLE SECTION
15.75 kgs
VOLUME PER LEG SECTION
2L
VOLUME PER MIDDLE SECTION
2L
HEAT OUTPUT PER SECTION
Delta ∆T 50˚C
112 Watts / 382 BTUs
Delta ∆T 60˚C
141 Watts / 482 BTUs
About The Brand - Arroll
Delivery
Arroll Cast Iron Radiators are extremely heavy so must be delivered on pallets. Standard UK Radiator Delivery is £49.99, there is a surcharge for more remote areas. We also deliver worldwide. Up to 4 standard radiators can be shipped on one pallet. Delivery is made kerb side to ground floor level of the delivery address. There must be access for the lorry and pallet truck so please bear this in mind.
IMPORTANT FINISH DELIVERY INFORMATION:
14 working days delivery for a Primer Finish
21 days for Paint Finish
28 days for Polished Finished
Overseas Orders
We regularly deliver goods across Europe and around the world. Please contact us for details on orders to be shipped outside of the UK.
