Arroll Princess Cast Iron Radiators are based on a design classic that was first introduced in 1898 by the Ideal Radiator Company. Well suited to modern and traditional spaces, its rounded contours and smooth casting make it an easy choice for any kind of space.
The Princess can be painted in any colour to create a dramatic effect and ixes and matches seamlessly with the Arroll Peerless should a slimer radiator be required.
The Arroll Princess 2 Column can be delivered fully built and tested up to 15 sections which is about 1200mm long. You may have this radiator in any length but some assembly on site will be required.
Each section is approximatey 77mm wide. The lengths of the radiator stated should only be used as a guide as every radiator is bespoke and hand built to your own specification. There will be tollerences for seal compression and milled faces so please don’t use these exact measurments to fix pipes.
Painted in any colour of your choice
Cast Iron Radiator Building Steps
Step OneSelect how many Radiator Sections
A section of a Cast Iron Radiator refers to each individual Cast Iron piece that, when fixed together, make up a Radiator.
Step TwoSelect your colour finish
We can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customization.
Step ThreeChoose Radiator Valves
Eleifend ullamcorper Aenean quam.Nec gravida conubia morbi eleifend ullamcorper aenean quam
Scelerisque ullamcorper facilisis nisl a suspendisse elementum musat rasd dignissim at condimentum artas quam ut in. Ars hac posuere luctus vehicula dapibus facilisis commodo curae parturient adipiscing natoque.
Step FourSelect your Bleeding Valves
We can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customization.
Step FiveChoose Luxury Wall Brackets
Eleifend ullamcorper Aenean quam.Nec gravida conubia morbi eleifend ullamcorper aenean quam
Scelerisque ullamcorper facilisis nisl a suspendisse elementum musat rasd dignissim at condimentum artas quam ut in. Ars hac posuere luctus vehicula dapibus facilisis commodo curae parturient adipiscing natoque.
Features

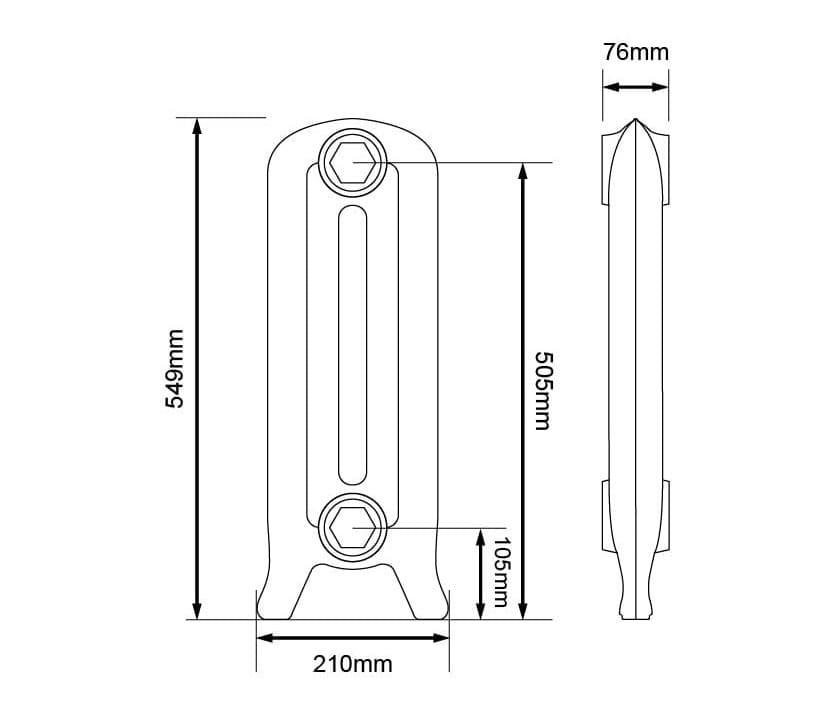

Dimensions
DIMENSIONS
LEG SECTION HEIGHT
549mm
SECTION LENGTH
76mm
MIDDLE SECTION HEIGHT
494mm
SECTION DEPTH
210mm
BOTTOM INLET TO FLOOR
103mm
TOP INLET TO FLOOR
503mm
PIPE CENTRES TO SKIRT
105mm
Technical
DIMENSIONS
LEG SECTION HEIGHT
549mm
SECTION LENGTH
76mm
MIDDLE SECTION HEIGHT
494mm
SECTION DEPTH
210mm
BOTTOM INLET TO FLOOR
103mm
TOP INLET TO FLOOR
503mm
PIPE CENTRES TO SKIRT
105mm
WEIGHT
EMPTY WEIGHT PER LEG SECTION
9 Kgs
EMPTY WEIGHT PER MIDDLE SECTION
9 Kgs
FILLED WEIGHT PER LEG SECTION
10.5 Kgs
FILLED WEIGHT PER MIDDLE SECTION
9.5 Kgs
VOLUME PER LEG SECTION
1.5L
VOLUME PER MIDDLE SECTION
0.5L
HEAT OUTPUT PER SECTION
DELTA ∆T 50˚C
85 Watts / 290 BTUs
DELTA ∆T 60˚C
107 Watts / 366 BTUs
